NTPsec

ntp

Report generated: Sat May 3 23:45:19 2025 UTC
Start Time: Thu Apr 3 23:45:19 2025 UTC
End Time: Sat May 3 23:45:19 2025 UTC
Report Period: 30.0 days

Local Clock Time/Frequency Offsets

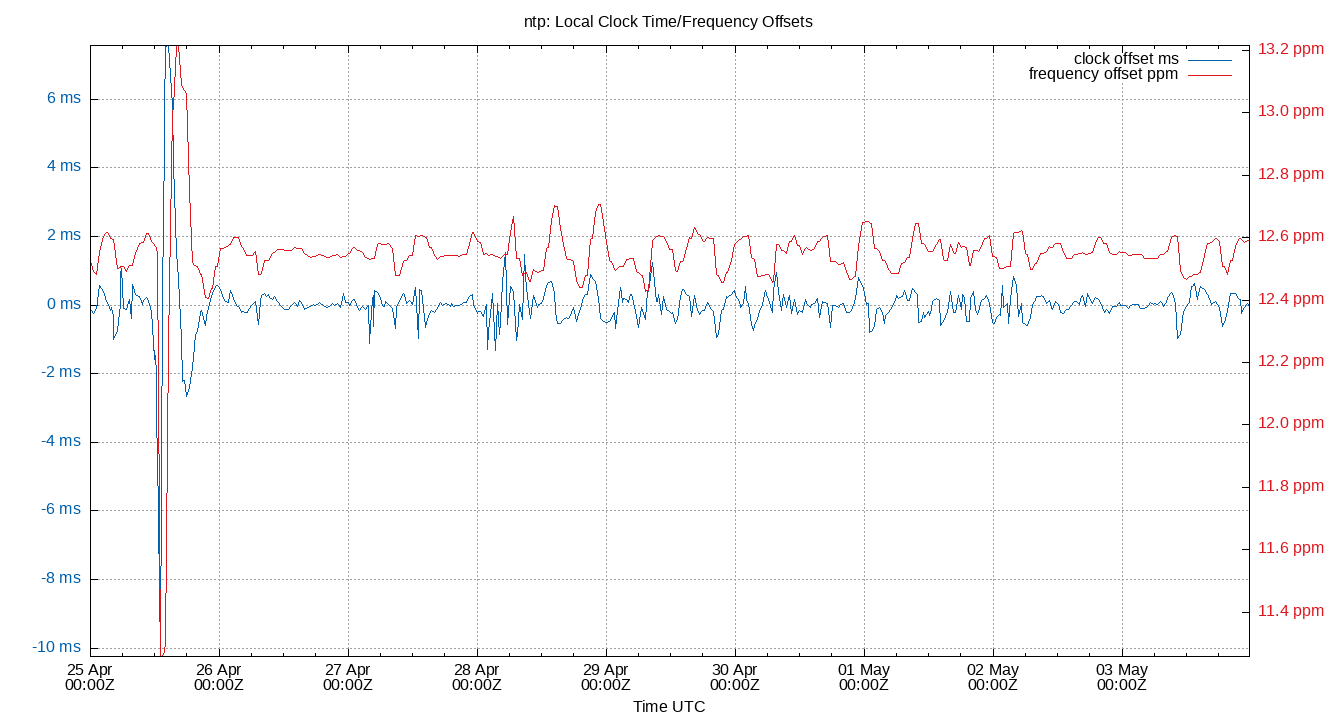

local offset plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Time Offset -10.245 -2.232 -0.849 0.013 0.619 4.114 7.569 1.468 6.346 0.952 0.001 ms -3.685 56.22
Local Clock Frequency Offset 11.259 12.260 12.465 12.547 12.644 13.061 13.215 0.180 0.801 0.152 12.544 ppm 5.398e+05 4.397e+07

The time and frequency offsets between the ntpd calculated time and the local system clock. Showing frequency offset (red, in parts per million, scale on right) and the time offset (blue, in μs, scale on left). Quick changes in time offset will lead to larger frequency offsets.

These are fields 3 (time) and 4 (frequency) from the loopstats log file.



Local RMS Time Jitter

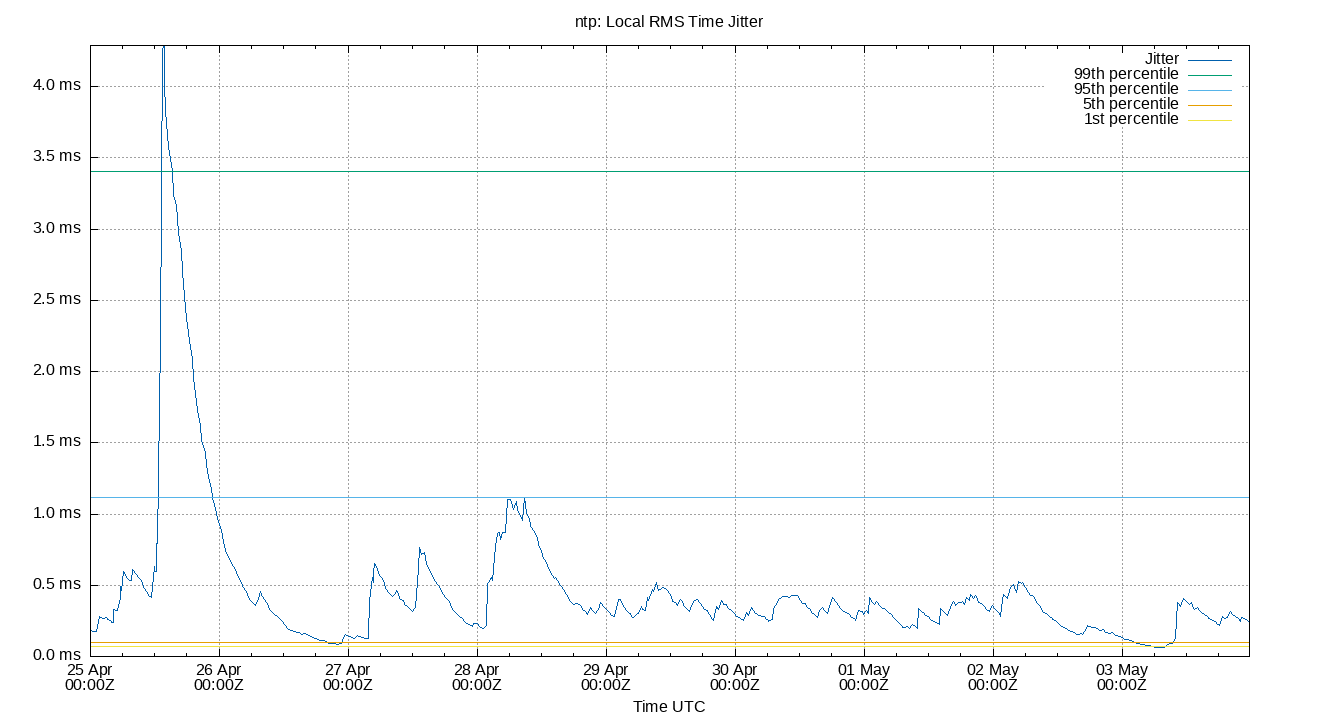

local jitter plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Time Jitter 0.060 0.068 0.100 0.339 1.115 3.402 4.289 1.016 3.334 0.552 0.471 ms 3.888 22.03

The RMS Jitter of the local clock offset. In other words, how fast the local clock offset is changing.

Lower is better. An ideal system would be a horizontal line at 0μs.

RMS jitter is field 5 in the loopstats log file.



Local RMS Frequency Jitter

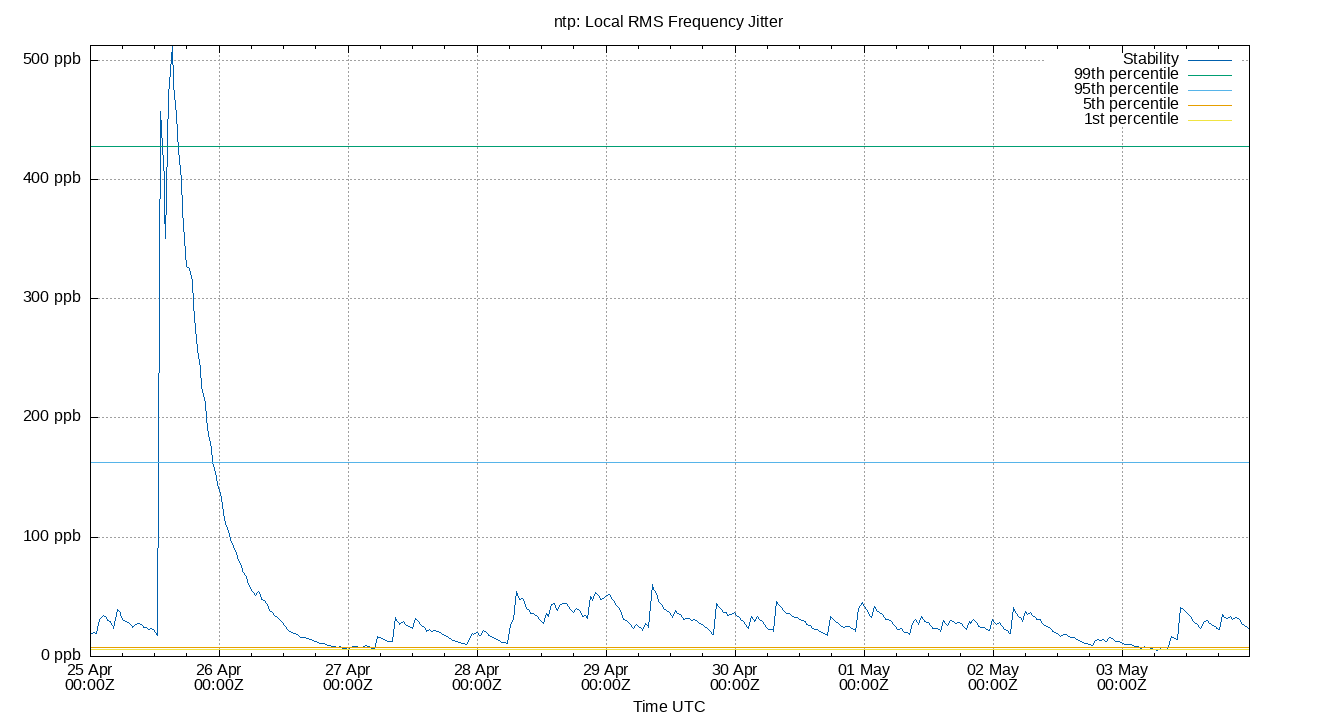

local stability plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local RMS Frequency Jitter 5.158 5.895 7.695 27.274 163.004 427.824 512.285 155.309 421.929 73.073 44.026 ppb 3.084 16.27

The RMS Frequency Jitter (aka wander) of the local clock's frequency. In other words, how fast the local clock changes frequency.

Lower is better. An ideal clock would be a horizontal line at 0ppm.

RMS Frequency Jitter is field 6 in the loopstats log file.



Local Clock Time Offset Histogram

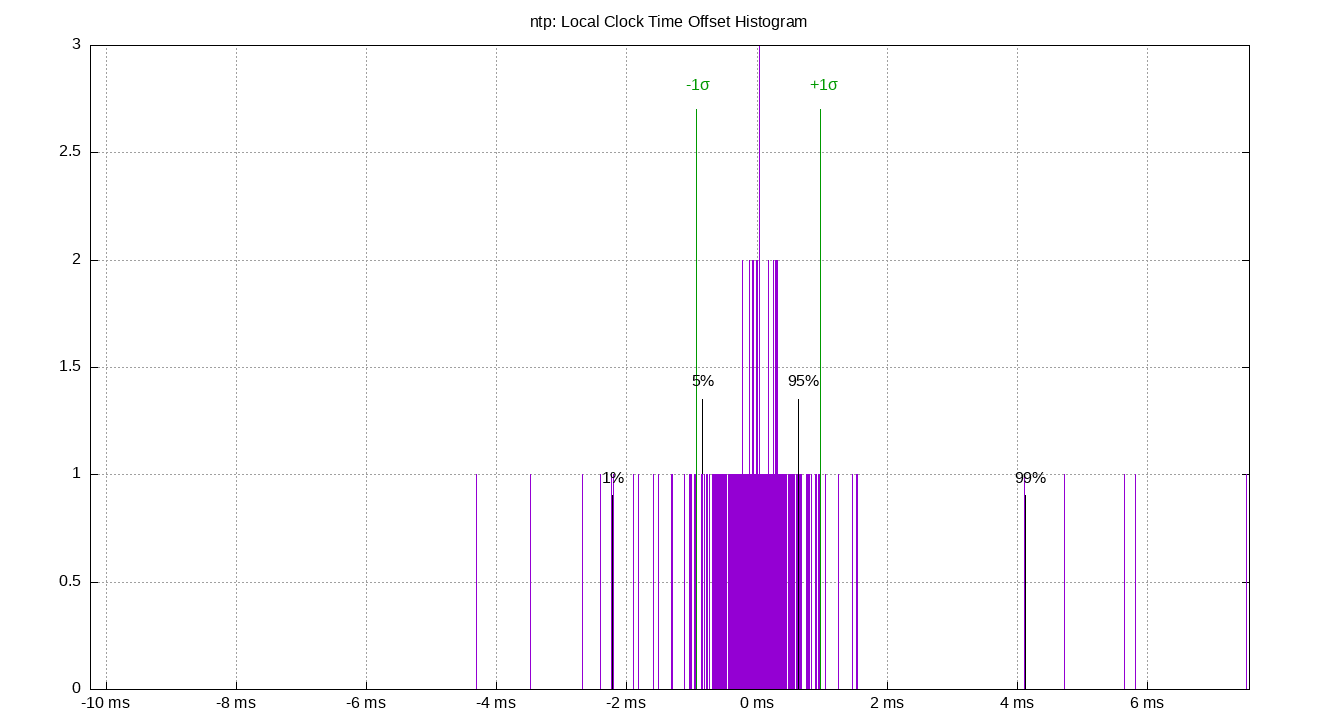

local offset histogram plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Offset -10.245 -2.232 -0.849 0.013 0.619 4.114 7.569 1.468 6.346 0.952 0.001 ms -3.685 56.22

The clock offsets of the local clock as a histogram.

The Local Clock Offset is field 3 from the loopstats log file.



Server Offsets

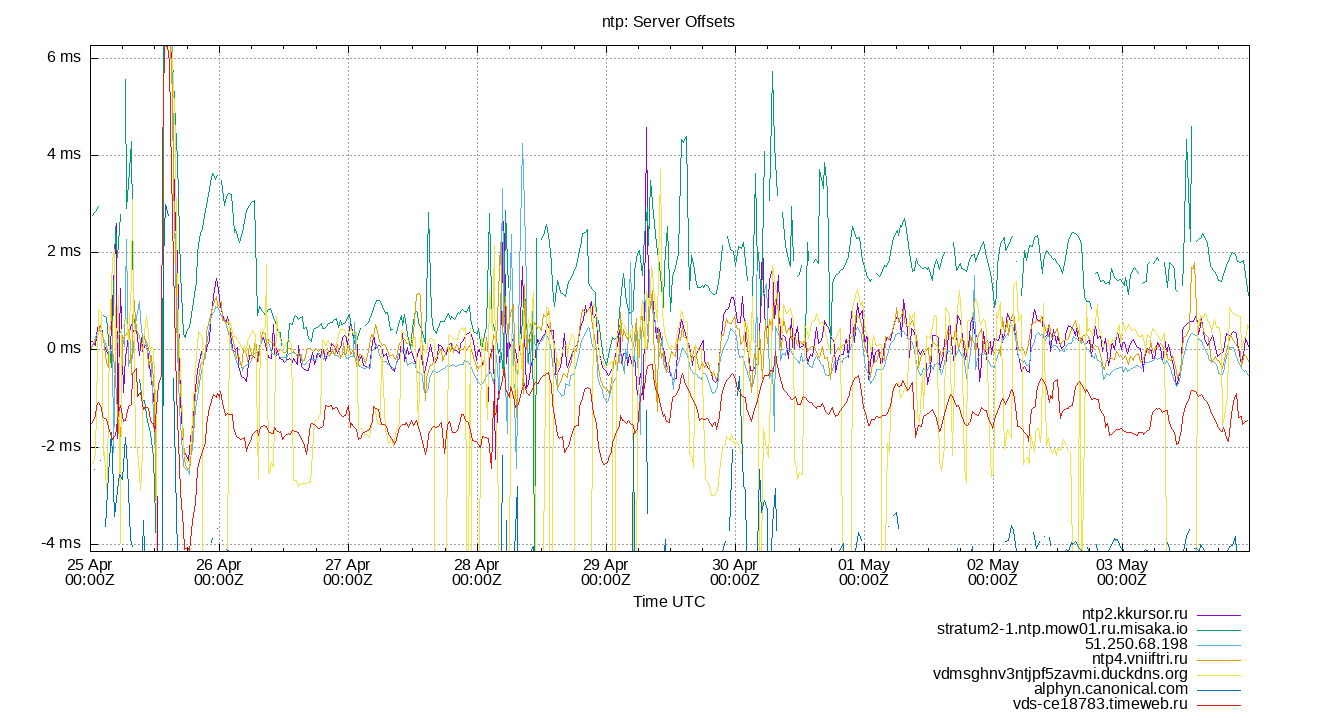

peer offsets plot

The offset of all refclocks and servers. This can be useful to see if offset changes are happening in a single clock or all clocks together.

Clock Offset is field 5 in the peerstats log file.



Server Offset 178.217.98.201

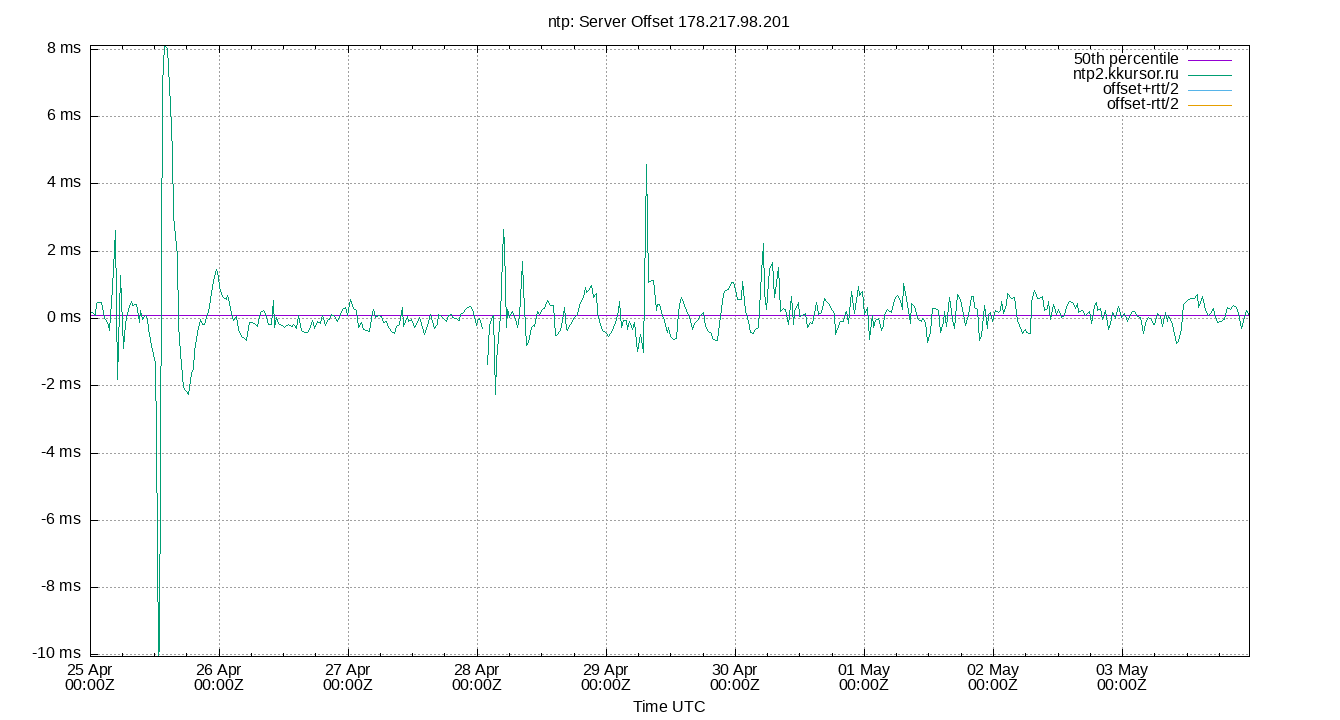

peer offset 178.217.98.201 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 178.217.98.201 -10.046 -2.247 -0.665 0.086 1.078 4.925 8.117 1.742 7.173 1.137 0.127 ms -3.798 48.57

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 185.209.85.222

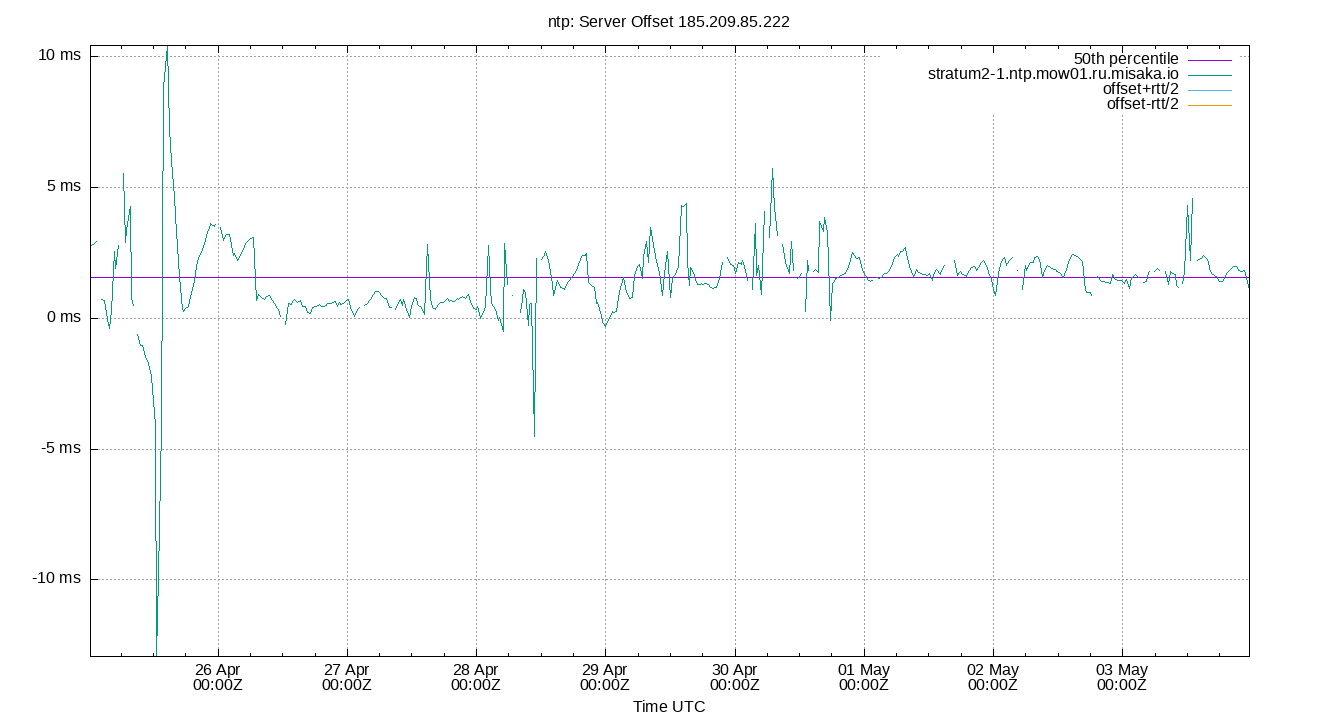

peer offset 185.209.85.222 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 185.209.85.222 -12.930 -4.090 0.028 1.581 3.503 5.982 10.436 3.474 10.072 1.601 1.522 ms -1.77 27.43

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 51.250.68.198

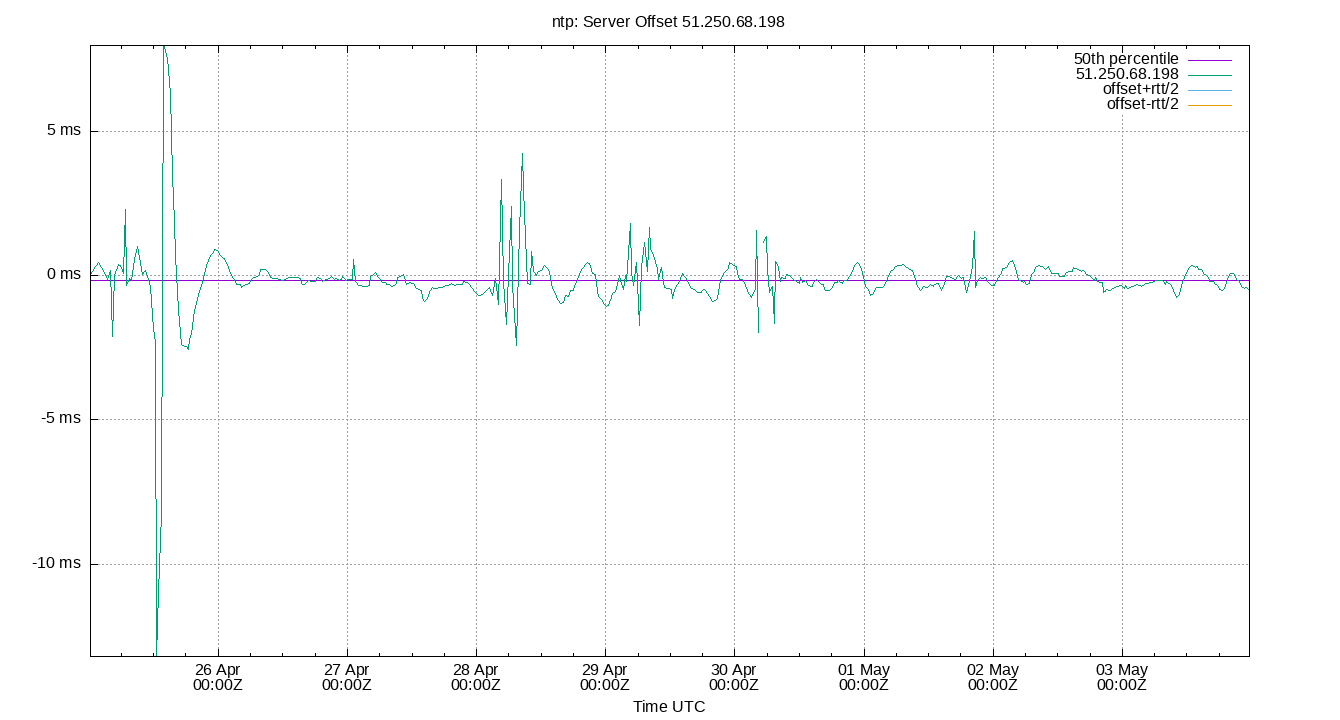

peer offset 51.250.68.198 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 51.250.68.198 -13.196 -2.463 -0.971 -0.186 0.843 4.240 7.963 1.815 6.703 1.271 -0.149 ms -6.814 66.58

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 89.109.251.24

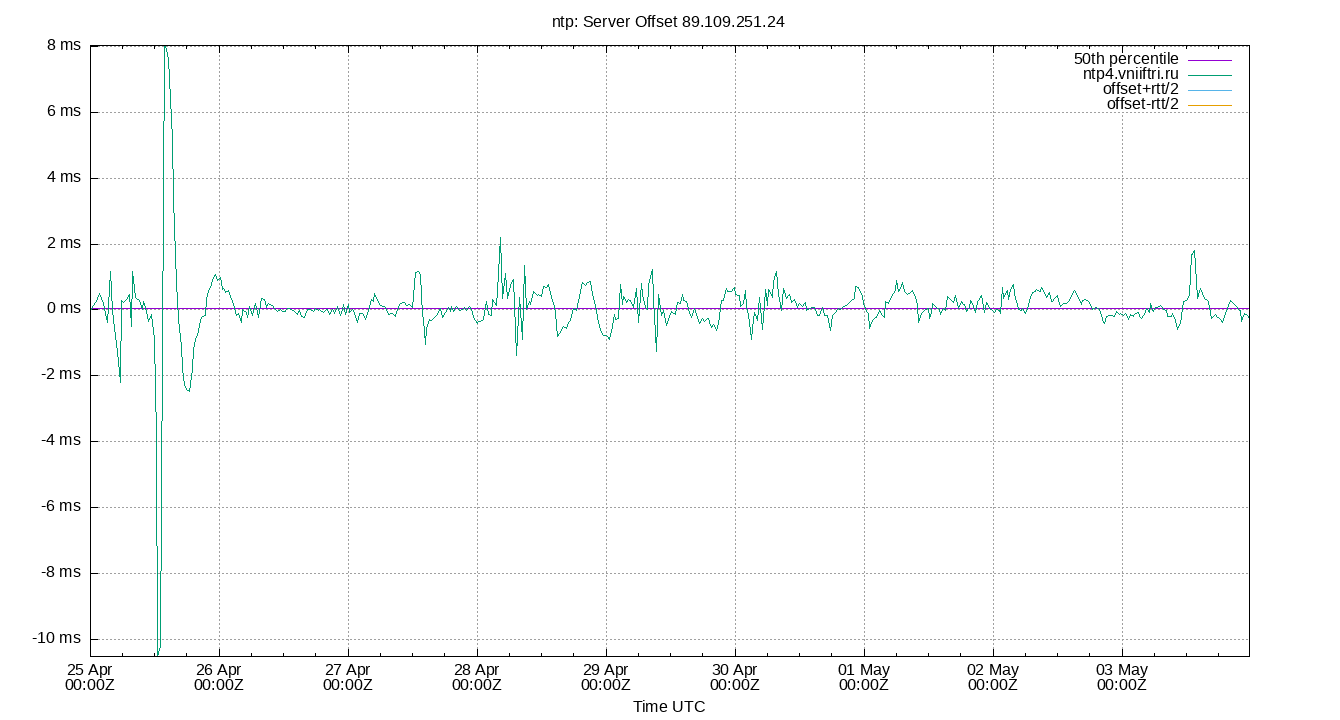

peer offset 89.109.251.24 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 89.109.251.24 -10.517 -2.421 -0.675 0.056 0.872 3.386 8.025 1.548 5.807 1.079 0.090 ms -4.839 64.76

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 89.110.95.134

peer offset 89.110.95.134 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 89.110.95.134 -15.164 -7.388 -6.485 0.051 1.124 3.708 8.254 7.608 11.096 2.600 -1.093 ms -8.407 30.71

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 91.189.91.157

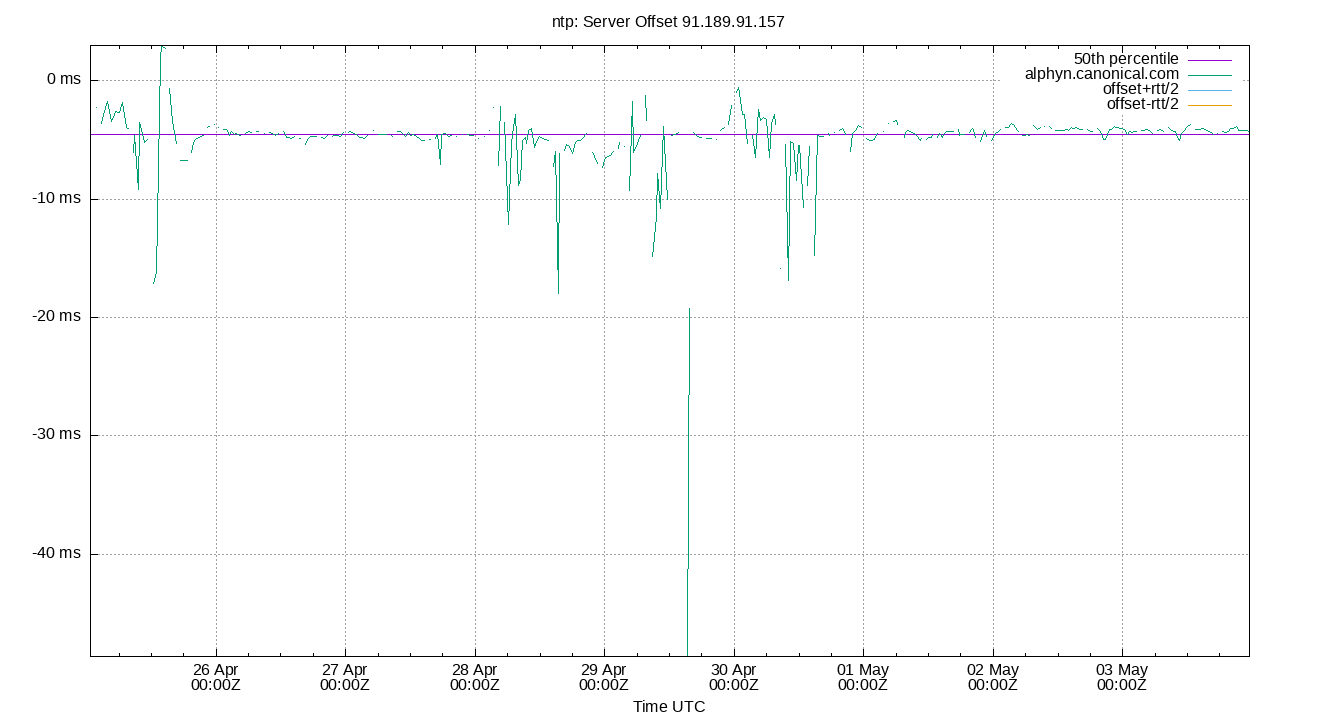

peer offset 91.189.91.157 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 91.189.91.157 -48.654 -17.087 -8.385 -4.509 -2.555 -0.538 2.994 5.830 16.548 3.229 -4.925 ms -31.42 252.3

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Offset 92.53.107.225

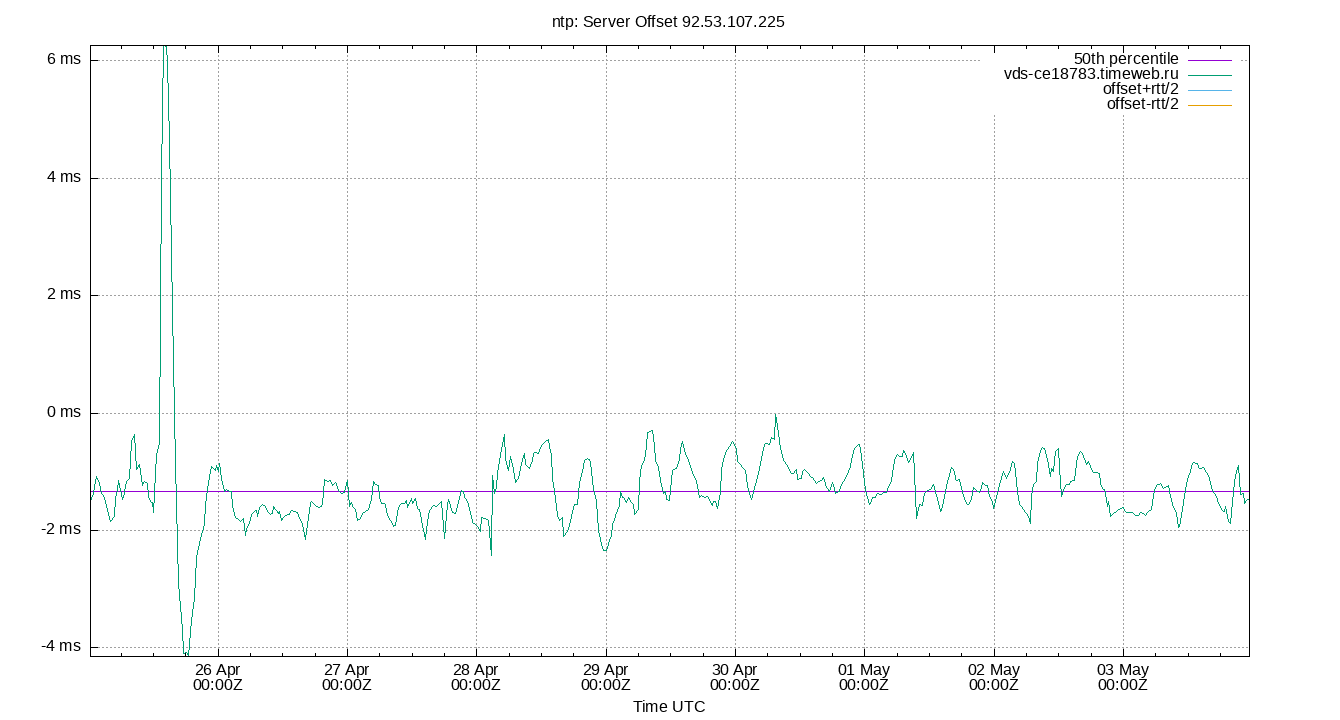

peer offset 92.53.107.225 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Offset 92.53.107.225 -4.148 -3.536 -2.018 -1.339 -0.537 4.018 6.263 1.481 7.554 0.861 -1.266 ms -17.74 69.28

The offset of a server in seconds. This is useful to see how the measured offset is behaving.

The chart also plots offset±rtt, where rtt is the round trip time to the server. NTP can not really know the offset of a remote chimer, NTP computes it by subtracting rtt/2 from the offset. Plotting the offset±rtt reverses this calculation to more easily see the effects of rtt changes.

Closer to 0s is better. An ideal system would be a horizontal line at 0s. Typical 90% ranges may be: local LAN server 80µs; 90% ranges for WAN server may be 4ms and much larger.

Clock Offset is field 5 in the peerstats log file. The Round Trip Time (rtt) is field 6 in the peerstats log file.



Server Jitters

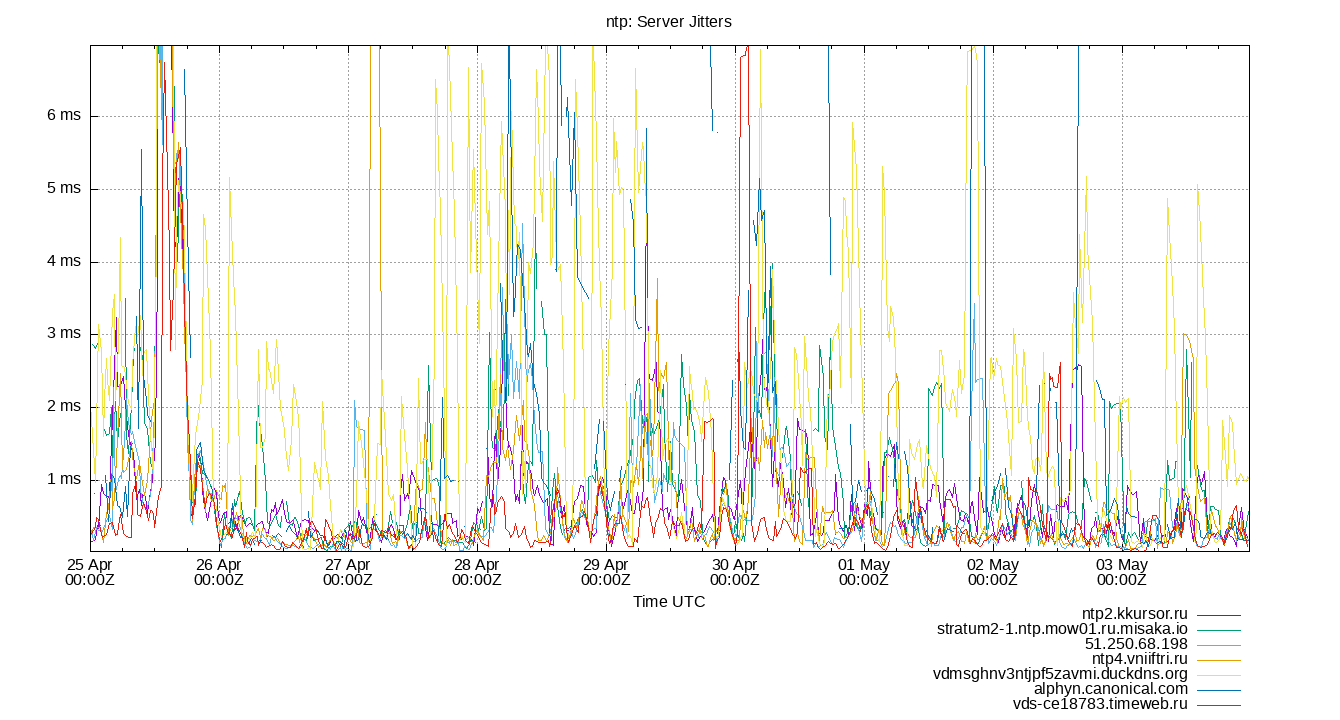

peer jitters plot

The RMS Jitter of all refclocks and servers. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 178.217.98.201

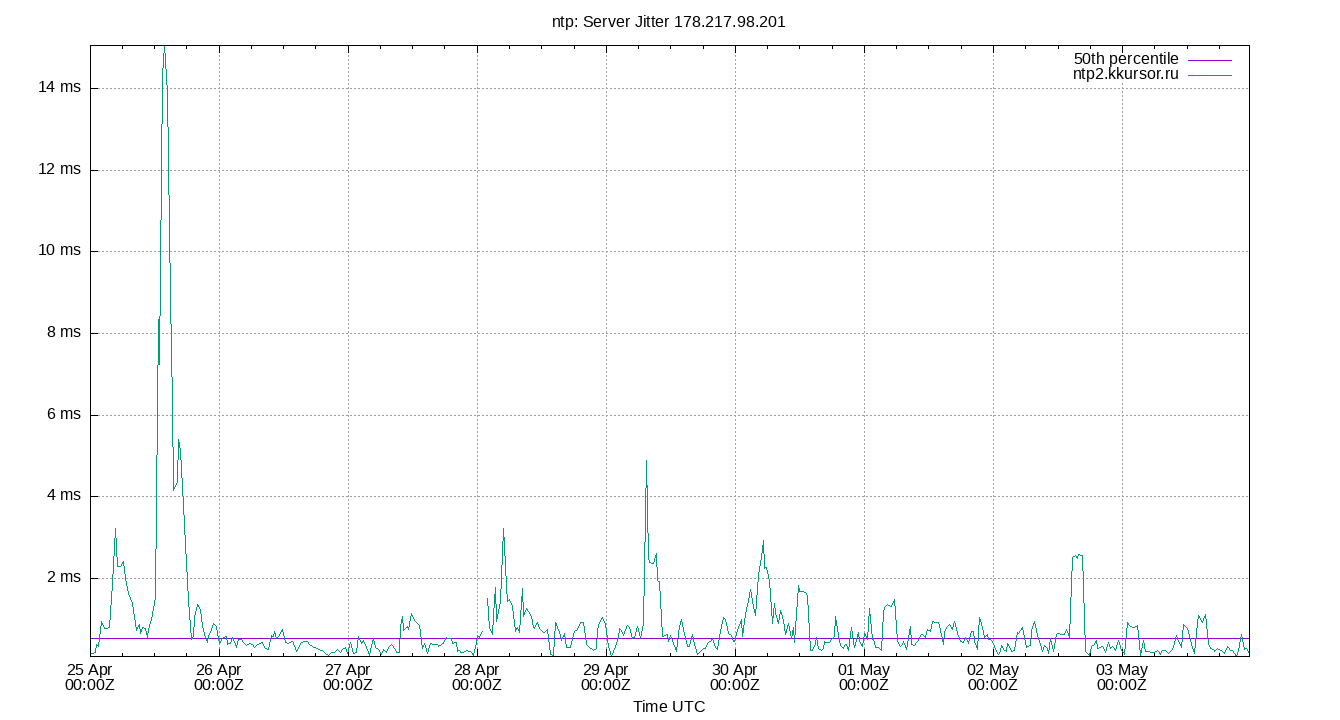

peer jitter 178.217.98.201 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 178.217.98.201 0.095 0.113 0.180 0.544 2.526 8.351 15.050 2.346 8.238 1.437 0.885 ms 5.225 45.6

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 185.209.85.222

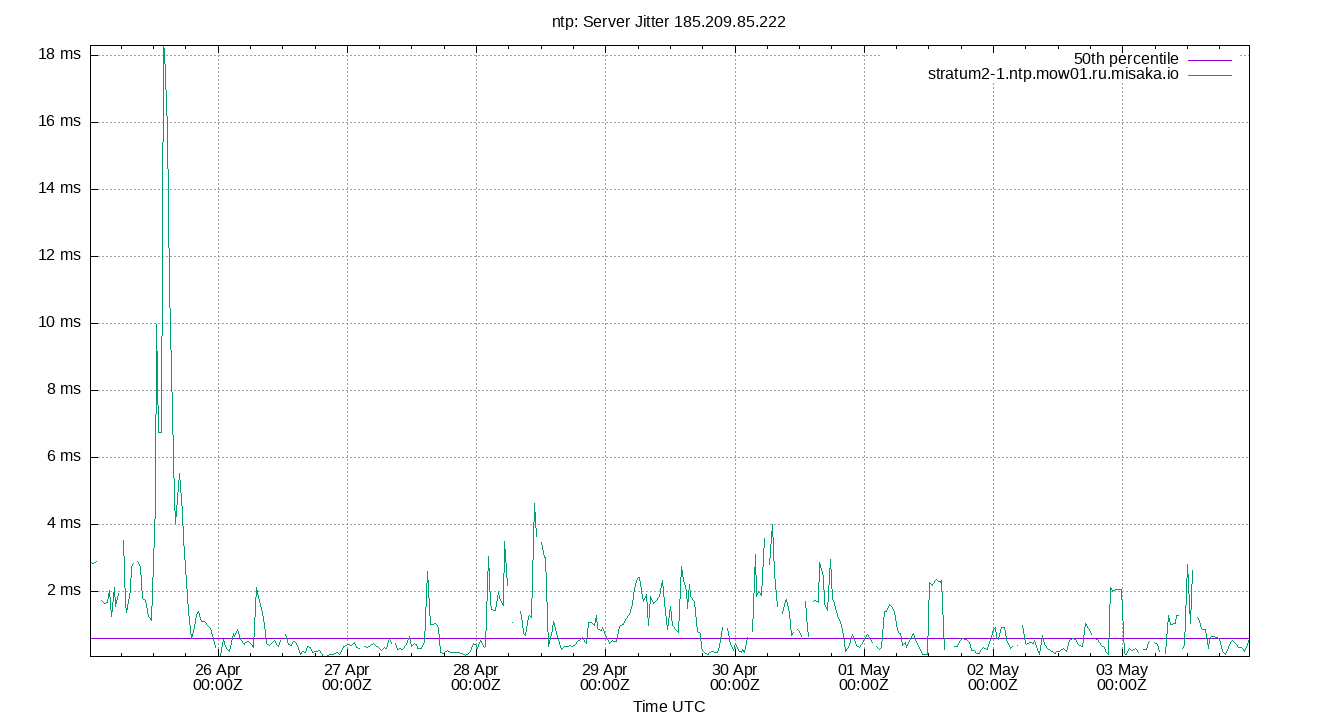

peer jitter 185.209.85.222 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 185.209.85.222 0.044 0.084 0.134 0.578 3.035 9.955 18.300 2.901 9.871 1.808 1.138 ms 4.804 41.5

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 51.250.68.198

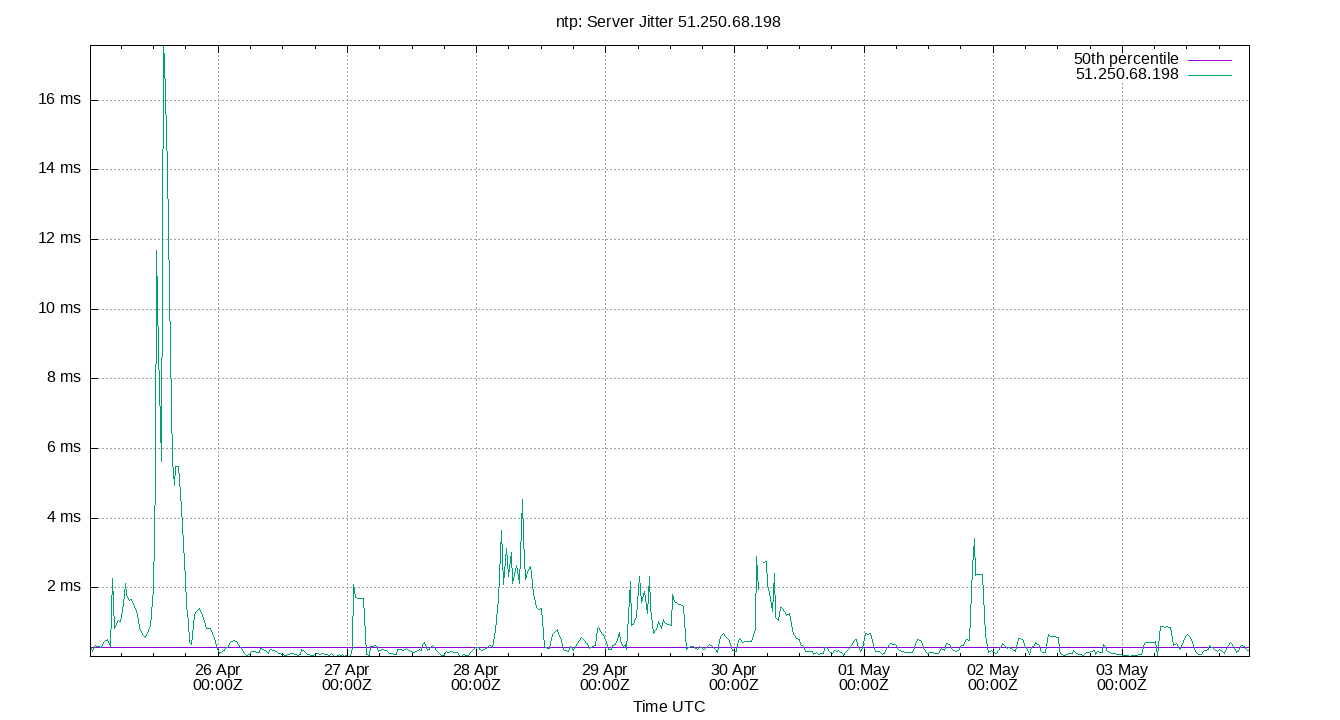

peer jitter 51.250.68.198 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 51.250.68.198 0.032 0.041 0.066 0.303 2.582 8.794 17.570 2.516 8.752 1.665 0.787 ms 4.694 43.07

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 89.109.251.24

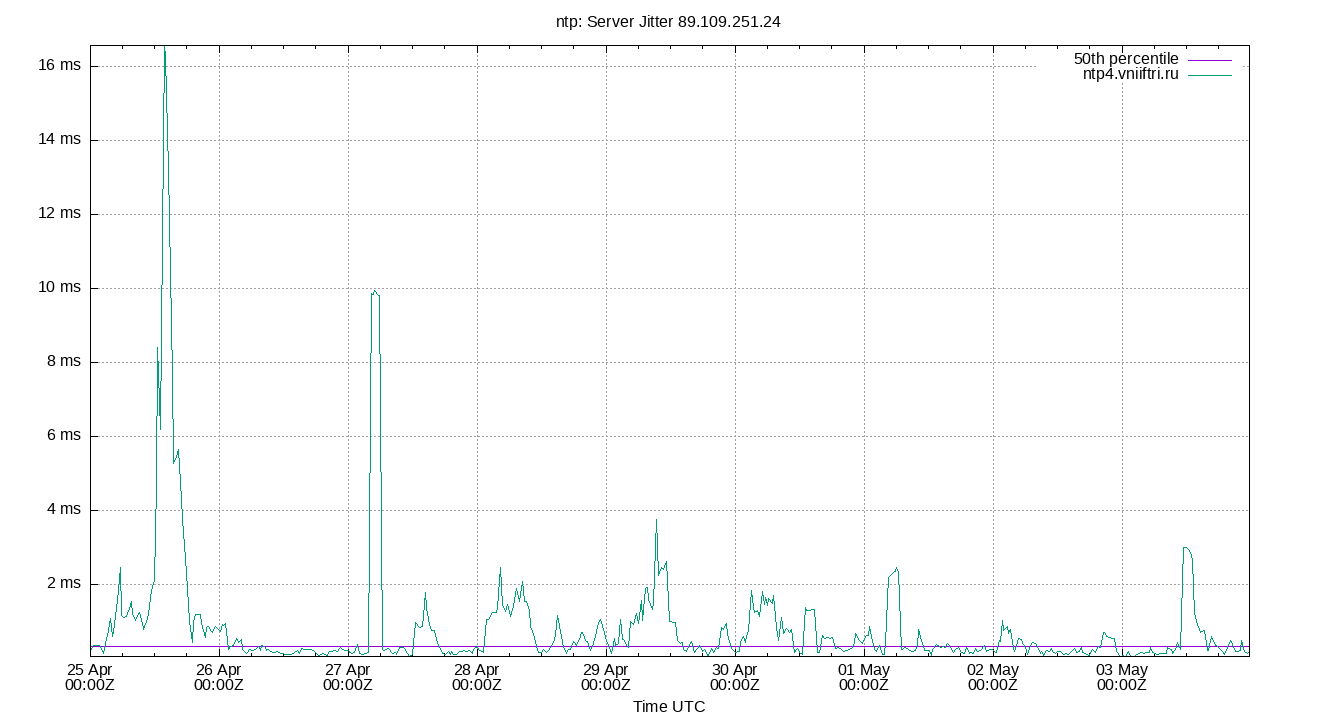

peer jitter 89.109.251.24 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 89.109.251.24 0.060 0.069 0.113 0.341 2.625 9.861 16.565 2.512 9.792 1.731 0.872 ms 3.994 31.12

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 89.110.95.134

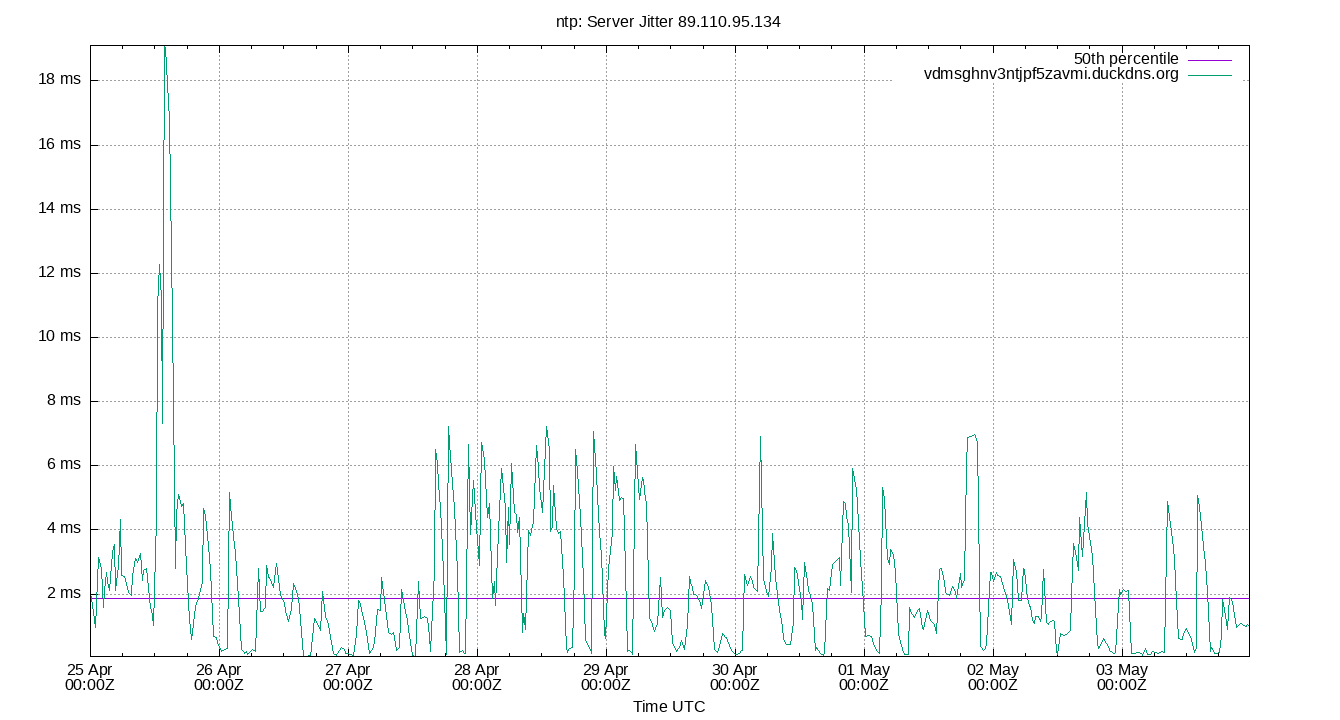

peer jitter 89.110.95.134 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 89.110.95.134 0.057 0.085 0.141 1.871 6.173 10.981 19.102 6.032 10.897 2.325 2.325 ms 2.704 16.39

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 91.189.91.157

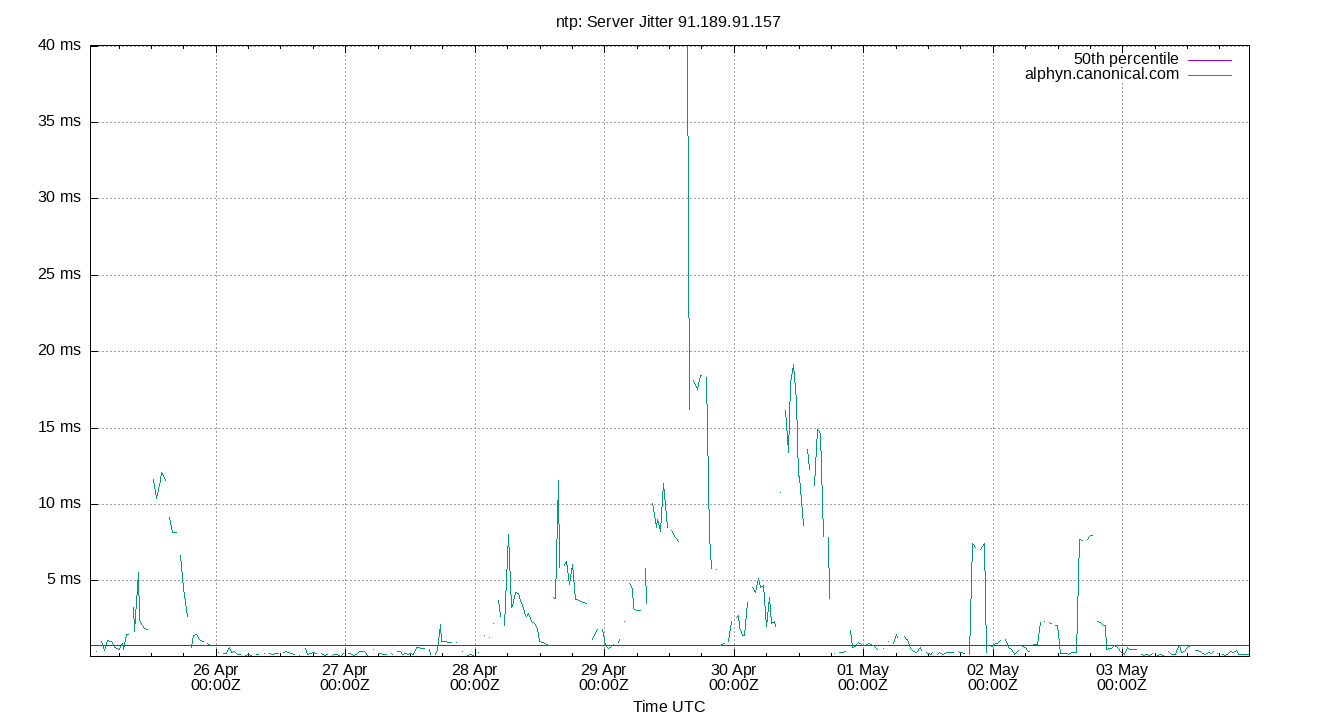

peer jitter 91.189.91.157 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 91.189.91.157 0.059 0.099 0.160 0.773 11.844 18.434 40.041 11.684 18.335 4.416 2.732 ms 1.991 14.63

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Server Jitter 92.53.107.225

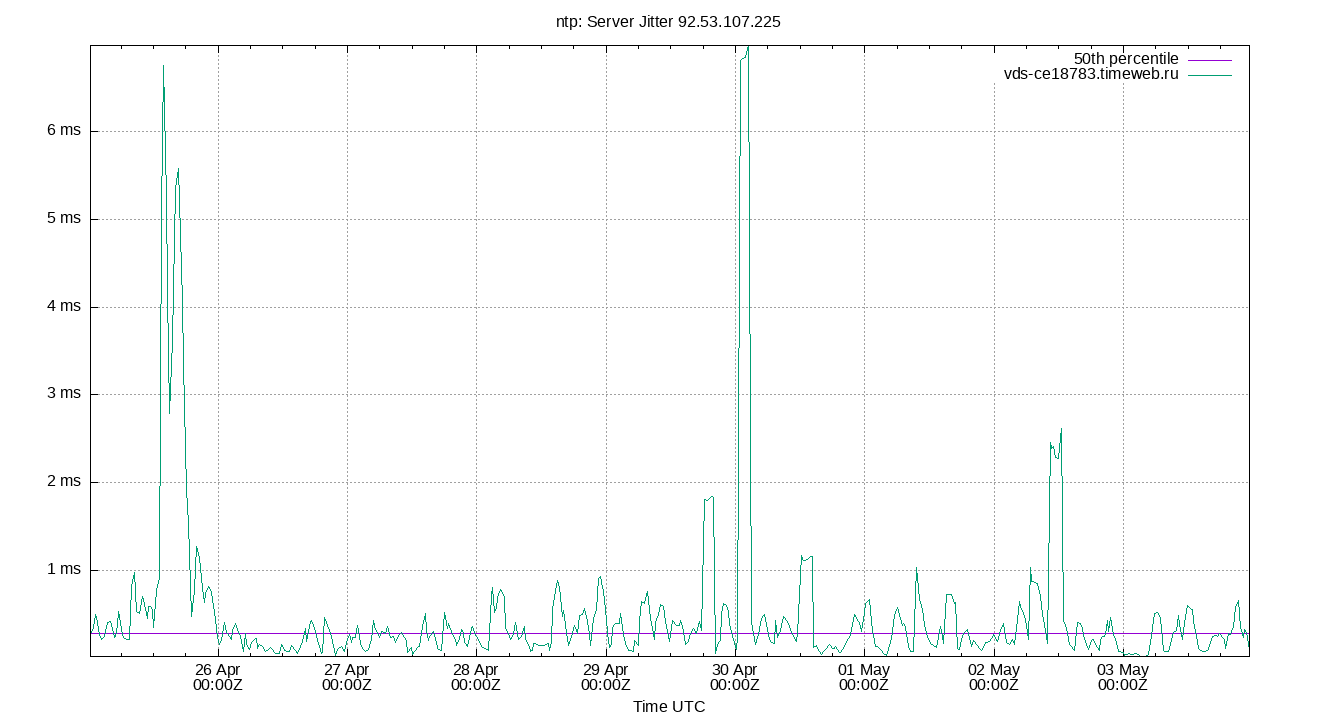

peer jitter 92.53.107.225 plot

Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Server Jitter 92.53.107.225 0.025 0.039 0.067 0.282 1.830 6.809 6.975 1.764 6.769 0.966 0.532 ms 3.411 21.17

The RMS Jitter of a server. Jitter is the current estimated dispersion, in other words the variation in offset between samples.

Closer to 0s is better. An ideal system would be a horizontal line at 0s.

RMS Jitter is field 8 in the peerstats log file.



Summary


Percentiles...... Ranges...... Skew- Kurt-
Name Min1%5%50%95% 99%Max   90%98%StdDev  MeanUnits nessosis
Local Clock Frequency Offset 11.259 12.260 12.465 12.547 12.644 13.061 13.215 0.180 0.801 0.152 12.544 ppm 5.398e+05 4.397e+07
Local Clock Time Offset -10.245 -2.232 -0.849 0.013 0.619 4.114 7.569 1.468 6.346 0.952 0.001 ms -3.685 56.22
Local RMS Frequency Jitter 5.158 5.895 7.695 27.274 163.004 427.824 512.285 155.309 421.929 73.073 44.026 ppb 3.084 16.27
Local RMS Time Jitter 0.060 0.068 0.100 0.339 1.115 3.402 4.289 1.016 3.334 0.552 0.471 ms 3.888 22.03
Server Jitter 178.217.98.201 0.095 0.113 0.180 0.544 2.526 8.351 15.050 2.346 8.238 1.437 0.885 ms 5.225 45.6
Server Jitter 185.209.85.222 0.044 0.084 0.134 0.578 3.035 9.955 18.300 2.901 9.871 1.808 1.138 ms 4.804 41.5
Server Jitter 51.250.68.198 0.032 0.041 0.066 0.303 2.582 8.794 17.570 2.516 8.752 1.665 0.787 ms 4.694 43.07
Server Jitter 89.109.251.24 0.060 0.069 0.113 0.341 2.625 9.861 16.565 2.512 9.792 1.731 0.872 ms 3.994 31.12
Server Jitter 89.110.95.134 0.057 0.085 0.141 1.871 6.173 10.981 19.102 6.032 10.897 2.325 2.325 ms 2.704 16.39
Server Jitter 91.189.91.157 0.059 0.099 0.160 0.773 11.844 18.434 40.041 11.684 18.335 4.416 2.732 ms 1.991 14.63
Server Jitter 92.53.107.225 0.025 0.039 0.067 0.282 1.830 6.809 6.975 1.764 6.769 0.966 0.532 ms 3.411 21.17
Server Offset 178.217.98.201 -10.046 -2.247 -0.665 0.086 1.078 4.925 8.117 1.742 7.173 1.137 0.127 ms -3.798 48.57
Server Offset 185.209.85.222 -12.930 -4.090 0.028 1.581 3.503 5.982 10.436 3.474 10.072 1.601 1.522 ms -1.77 27.43
Server Offset 51.250.68.198 -13.196 -2.463 -0.971 -0.186 0.843 4.240 7.963 1.815 6.703 1.271 -0.149 ms -6.814 66.58
Server Offset 89.109.251.24 -10.517 -2.421 -0.675 0.056 0.872 3.386 8.025 1.548 5.807 1.079 0.090 ms -4.839 64.76
Server Offset 89.110.95.134 -15.164 -7.388 -6.485 0.051 1.124 3.708 8.254 7.608 11.096 2.600 -1.093 ms -8.407 30.71
Server Offset 91.189.91.157 -48.654 -17.087 -8.385 -4.509 -2.555 -0.538 2.994 5.830 16.548 3.229 -4.925 ms -31.42 252.3
Server Offset 92.53.107.225 -4.148 -3.536 -2.018 -1.339 -0.537 4.018 6.263 1.481 7.554 0.861 -1.266 ms -17.74 69.28
Summary as CSV file

Glossary:

frequency offset:
The difference between the ntpd calculated frequency and the local system clock frequency (usually in parts per million, ppm)
jitter, dispersion:
The short term change in a value. NTP measures Local Time Jitter, Refclock Jitter, and Server Jitter in seconds. Local Frequency Jitter is in ppm or ppb.
kurtosis, Kurt:
The kurtosis of a random variable X is the fourth standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of kurtosis. A normal distribution has a kurtosis of three. NIST describes a kurtosis over three as "heavy tailed" and one under three as "light tailed".
ms, millisecond:
One thousandth of a second = 0.001 seconds, 1e-3 seconds
mu, mean:
The arithmetic mean: the sum of all the values divided by the number of values. The formula for mu is: "mu = (∑xi) / N". Where xi denotes the data points and N is the number of data points.
ns, nanosecond:
One billionth of a second, also one thousandth of a microsecond, 0.000000001 seconds and 1e-9 seconds.
percentile:
The value below which a given percentage of values fall.
ppb, parts per billion:
Ratio between two values. These following are all the same: 1 ppb, one in one billion, 1/1,000,000,000, 0.000,000,001, 1e-9 and 0.000,000,1%
ppm, parts per million:
Ratio between two values. These following are all the same: 1 ppm, one in one million, 1/1,000,000, 0.000,001, and 0.000,1%
‰, parts per thousand:
Ratio between two values. These following are all the same: 1 ‰. one in one thousand, 1/1,000, 0.001, and 0.1%
refclock:
Reference clock, a local GPS module or other local source of time.
remote clock:
Any clock reached over the network, LAN or WAN. Also called a peer or server.
time offset:
The difference between the ntpd calculated time and the local system clock's time. Also called phase offset.
σ, sigma:
Sigma denotes the standard deviation (SD) and is centered on the arithmetic mean of the data set. The SD is simply the square root of the variance of the data set. Two sigma is simply twice the standard deviation. Three sigma is three times sigma. Smaller is better.
The formula for sigma is: "σ = √[ ∑(xi-mu)^2 / N ]". Where xi denotes the data points and N is the number of data points.
skewness, Skew:
The skewness of a random variable X is the third standardized moment and is a dimension-less ratio. ntpviz uses the Pearson's moment coefficient of skewness. Wikipedia describes it best: "The qualitative interpretation of the skew is complicated and unintuitive."
A normal distribution has a skewness of zero.
upstream clock:
Any server or reference clock used as a source of time.
µs, us, microsecond:
One millionth of a second, also one thousandth of a millisecond, 0.000,001 seconds, and 1e-6 seconds.



This page autogenerated by ntpviz, part of the NTPsec project
